15KA Flake Ice Machine
| Model | GM15-KA |
| Daily Capacity(KG/24H) | 1500 |
| Ice Bin Capacity(KG) | 400 |
| Refrigeration Capacity(KW) | 9.75 |
| Total Power(KW) | 6.9 |
| Compressor Brand | Danfoss |
| Compressor Power(HP) | 8 |
| Reducer Power(KW) | 0.18 |
| Water Pump Power (KW) | 0.014 |

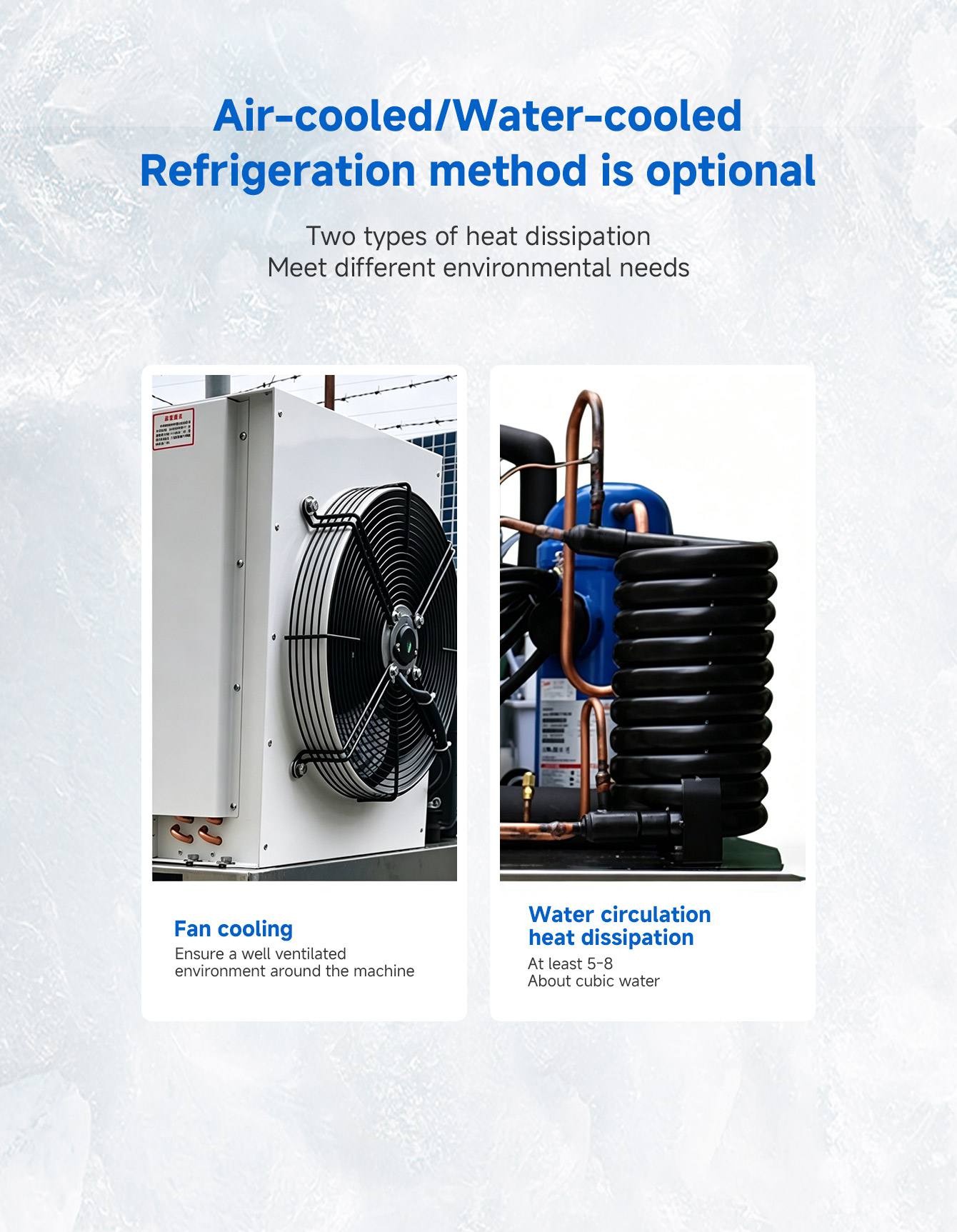

| Cooling Mode | Air Cooling |
| Ice Bin Dimension(L*W*H)MM | 1500*1336*1085 |
| Flake lce Machine Dimension(L*W*H)MM | 1510*940*1002 |
| Net Weight (KG)(Without lce Bin) | 410 |
• Export experience — Proven track record in international markets with reliable shipping and documentation support.
• Technical support — Dedicated engineering assistance for installation, operation, and troubleshooting.
• Factory direct price — Competitive pricing with no middleman markup.
• Custom design available — Tailored configurations to match your specific capacity, voltage, and application requirements.
• Professional ice machine manufacturer — Years of specialized expertise in industrial ice-making equipment.
|
Name |
Technical Data |
|
Ice production |
2.5ton/24h |
|
Refrigeration capacity |
13541 Kcal/h |
|
Evaporating temp. |
-20℃ |
|
Condensing Temp. |
40℃ |
|
Ambient Temp. |
35℃ |
|
Inlet water Temp. |
20℃ |
|
Total Power |
8.8kw |
|
Compressor Power |
12HP |
|
Reducer Power |
0.18KW |
|
Water pump Power |
0.014KW |
|
Brine Pump |
0.012KW |
|
Standard Power |
3P-380V-50Hz |
|
Inlet water pressure |
0.1Mpa－0.5Mpa |
|
Refrigerant |
R404A |
|

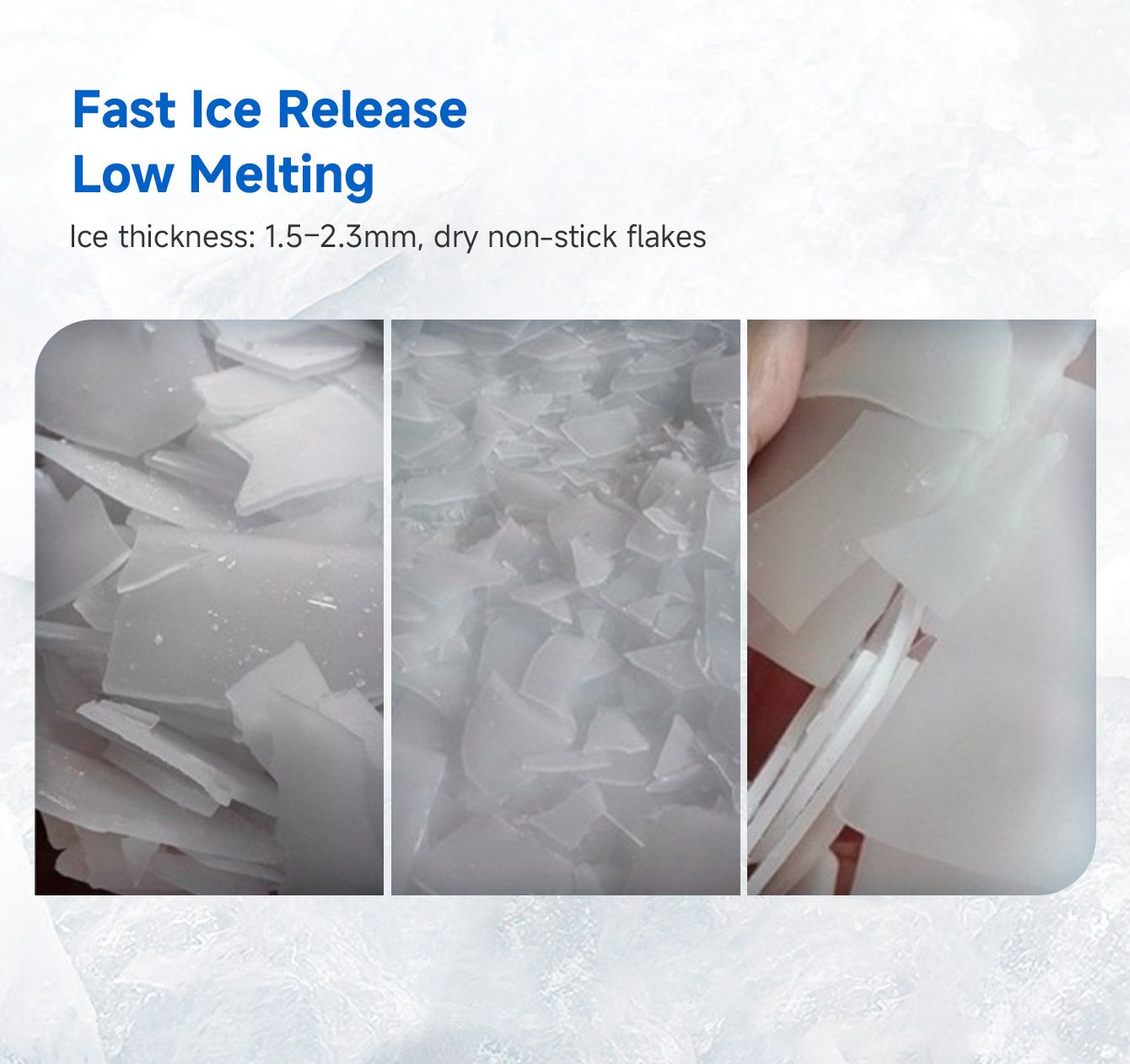

Flake ice Temp. |
-5℃ |
|
Feeding water tube size |
1/2" |
|
Net weight |
491kg |
|
Dimension of flake ice machine |
1600mm×1180mm×1205mm |
1. Safe operation and good reliability:All accessories and parts of Icesnow system are adopted of top-level products of western or local markets, greatly enhance the products quality.
2. Easy operation:
flake ice machine is automatically controlled by micro-computer, and has protection for phase lack, reverse, H/low pressure and bin full which makes the operation more reliable and steady, reduced the possibility of damage, easy for maintenance.
3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.
4. Energy-efficient and cost saving
5. 18 months warranty. Life time technical support.
Q1: What daily capacity does this flake ice machine produce?
A: Capacity is listed in the product title and specification table (Icesnow GM series: 0.3–50 ton/day). Output is rated at design water and ambient conditions; hot feed water will reduce daily tonnage.
Q2: Which industries is this flake ice machine suitable for?
A: Seafood and fishery, poultry and meat processing, supermarket wet counters, and concrete cooling. Flake ice wraps around products and pulls heat down faster than tube or cube ice.
Q3: Can it operate in tropical or high-temperature plants?
A: Yes. Icesnow flake ice machines are designed for hot climates and can operate at ambient temperatures up to 45°C when correctly sized.
Q4: Do you offer seawater, voltage, or refrigerant customization?
A: Yes. Both freshwater GM models and seawater GMH models are available. Please confirm 3-phase voltage, water source, and condenser type. Factory lead time is typically 20–30 days.
Q5: How do I obtain a factory quote?
A: Send your industry, peak kg/day, water source (fresh or seawater), and voltage via the contact form or WhatsApp. Pricing depends on these options; there is no public list price.
