ICESNOW 20 Tons/day Flake Evaporator SUS304 Flake Ice Drum Equipment OEM

Short Description:

1 . Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.

2. Established in 2003, factory around 10.000m2,

3. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers’ requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.

4. Equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool.


  • System : Ammonia for flake ice machine
  • Dimension: 2470*1670*2170mm
  • Weight : 840Kg
  • Ice capacity: 20T/24H
  • Product Detail

    Product Tags

    Main Features

    1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ

    2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.

    3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

    4. flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.

    5. Refrigerant gas: R717A, ammonia system

    Product Decription:

    1 . Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.

    2. Established in 2003, factory around 10.000m2,

    3. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.

    4. Equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool.

    Product Specification:

    Name

    Technical Data

    Ice production

    20Ton/day

    Refrigeration capacity

    130KW

    Evaporating temp.

    -20℃

    Condensing Temp.

    40℃

    Ambient Temp.

    35℃

    Inlet water Temp.

    20℃

    Reducer motor Power

    0.75KW

    Water pump Power

    0.37KW

    Brine water Pump

    0.012KW

    Standard Power

    380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P

    Inlet water pressure

    0.1Mpa0.5Mpa

    Refrigerant gas

    R717A

    Flake ice Temp.

    -5℃

    Feeding water tube size

    1/2"

    Net weight

    1620kg

    Dimension of flake ice evaporator

    2470*1680*2170mm

    Product Advantage:

    1. Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.

    2. ice Making Machine Parts. Evaporator are all produced by our company , we can control all the production process and make sure steady quality, improve the competition.

    3. Icesnow ice machine have passed CE, ISO certificates.

    4. The other parts of Refrigeration, Electric, Mechanical all take the famous brands domestic and overseas.Which is much better for keeping products much more good quality and competition

    Description

    Ice Shape:

    Flake Ice

    Voltage:



    380v/50hz/3p



    Condition:

    New

    Material:



    Carbon Steel



    Temperature Of Flake Ice:

    -5℃-8℃

    Ice Thickness:



    1.5mm-2.2mm



    Water-feeding Pressure:

    0.1Mpa0.6Mpa

    High Light:





    OEM Flake Ice Evaporator, SUS304 Flake Ice Evaporator, OEM Evaporator Drum





    Product Details:

    Place of Origin: China
    Brand Name: ICESNOW
    Certification: CE CERTIFICATE
    Model Number: GMS-200KA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 1 USD
    Packaging Details: WOODEN PACKING
    Delivery Time: 20 working days

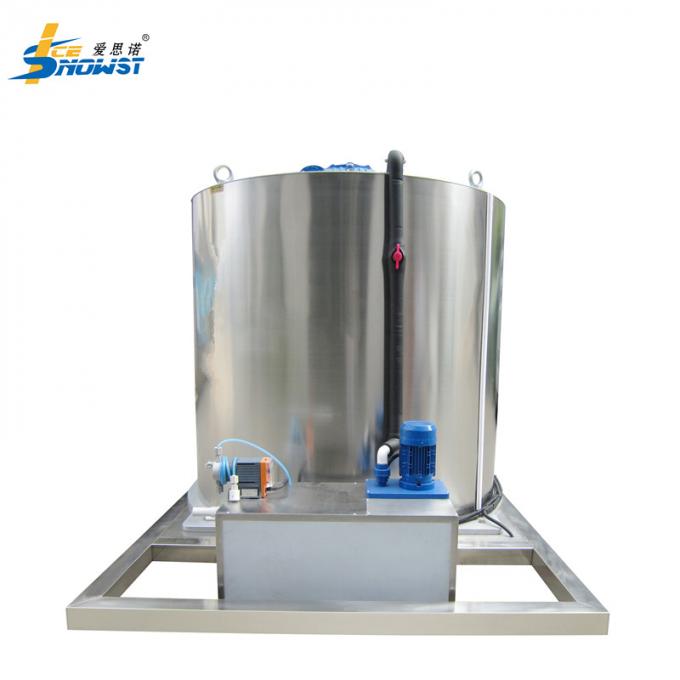

    Product image:

    product image

    FAQ

    Q1: Where is the best place to install the equipment and what other factors need to be considered?

    A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power

    Q2 : Can we put our own logo on the machine?

    Sure, we can do OEM for you. ODM also is welcomed

    Q3: Is sample order available?

    Yes, samples is available, but the sample cost and postage charge is on buyer's account.
