ICESNOW 30 tons/day Flake Ice Maker Evaporator/Drum biggest capacity

Short Description:

Icesnow Flake Ice Evaporator Drum Features:

Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is professional in producing flake ice evaporator. Its evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.

Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.

Product Detail

Product Tags

Technical Data

Model GMS-300KA
Daily Output( Ton/24hrs) 30ton
Necessary Refrigeration(kw) 195KW
Voltage power 380V/50Hz/3P,380V/60HZ/3P,220V/60HZ/3P
Reducer motor Power(kw) 1.5KW
Water pump power 0.55KW
Dimension (L*W*H)(mm) 3330*2320*2290mm
Ice falling hole diameter (mm) 2170mm
Weight(kg) 3650KG

Deatails of the Flake Ice Evaporator

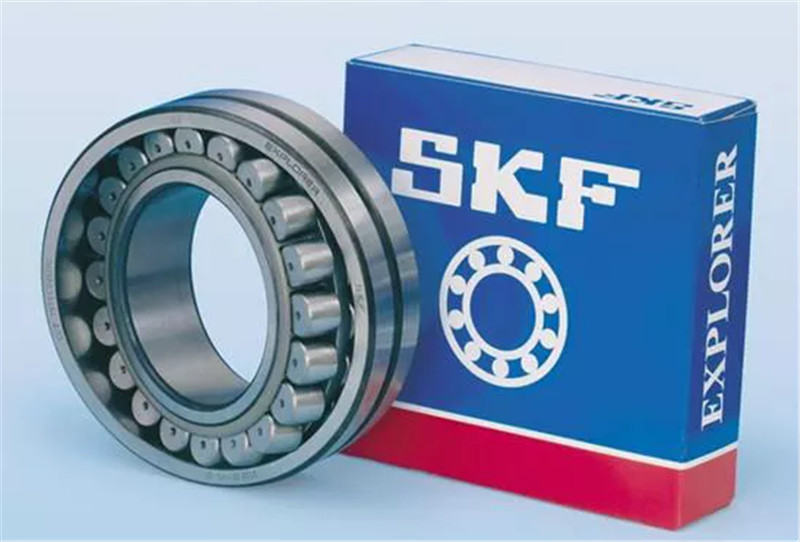

One-time molding SUS304 ice scraper & SKF bearing


SUS304 shaft & freezing surface

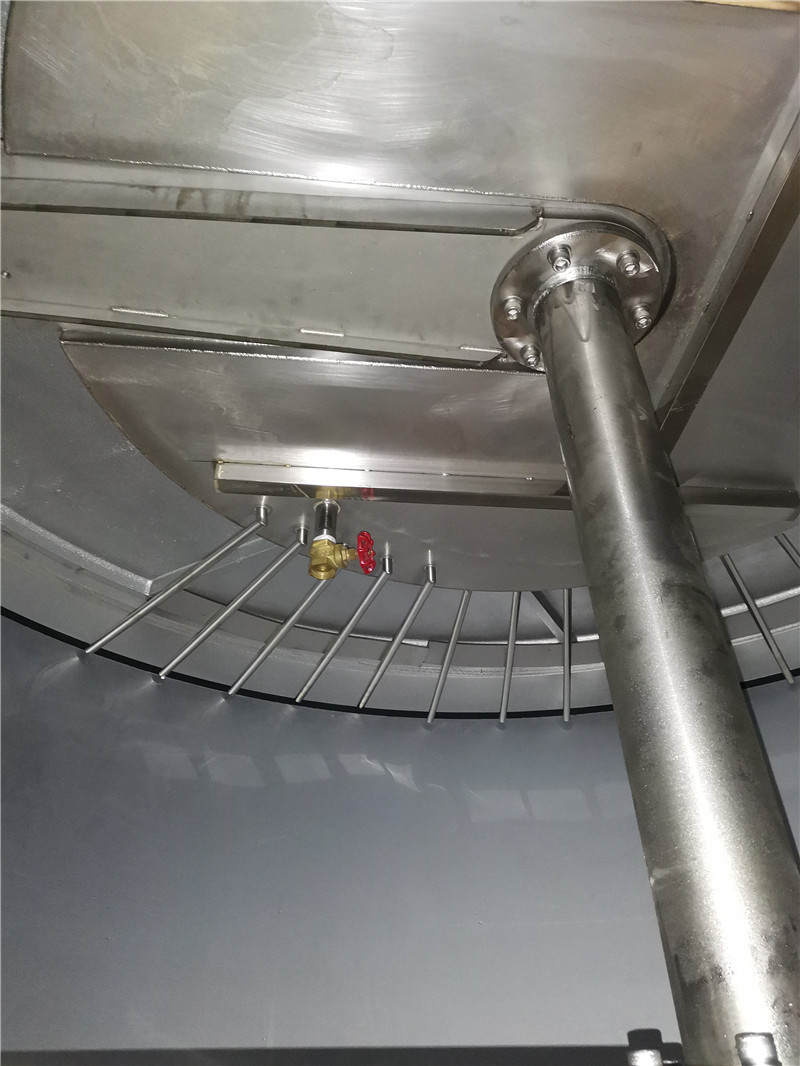

wuskd (1)

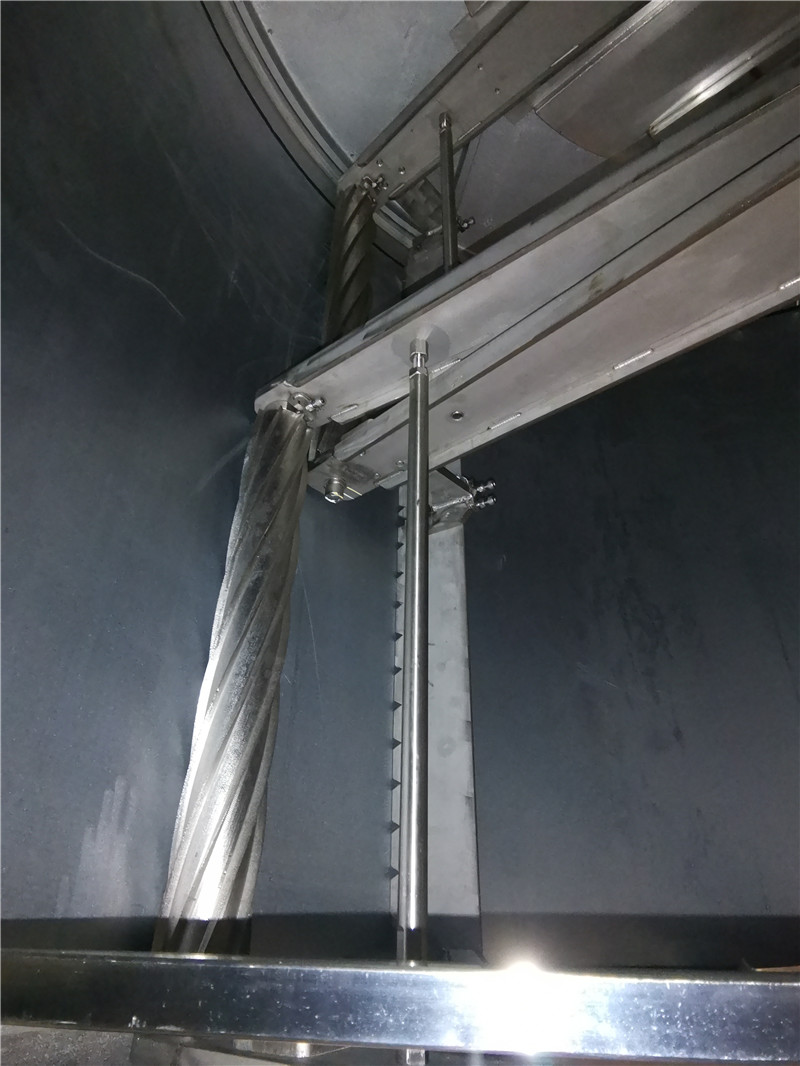

wuskd (2)

10mm thickness polyurethane material & SUS304 outer cover


Icesnow Flake Ice Evaporator Drum Main Accessories:

(1) Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable;

(2) Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standard;

(3) Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.

(4) Evaporator size and installation direction can be customized according to customers requirements

(5) The material of evaporator wall, up and down pedestal is available (SS304 & SS316).

(6) stainless steel water tank,  stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.

(7) we used C & U brand bearing, which is Japan brand, other supplier used very cheaper price bearing that from China, the quality is bad. we used SKF oil seal, which is good brand, it can use at -35degree.

Icesnow Flake Ice Evaporator Drum Advantages:

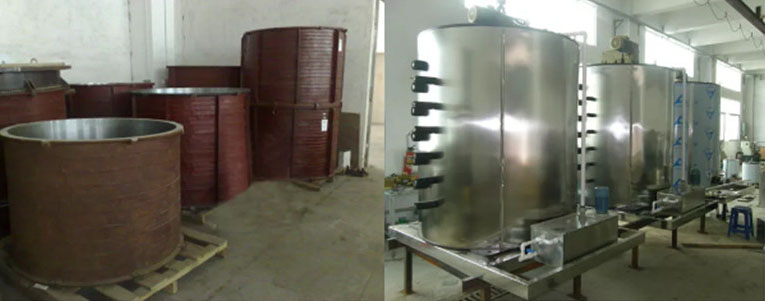

Professional evaporator producing plant, various horizontal lathes are all owned In Icesnow company. And the 3meter diameter vertical lathe can process the single flake ice evaporator work piece up to 60 tons. The high-performance annealing heat treatment equipment can eliminate the welding stress with its 850℃ high temperature annealing treatment ability, which can guarantee flake ice evaporator good material mechanics performance and prevent the evaporator inner wall from deformation forever.

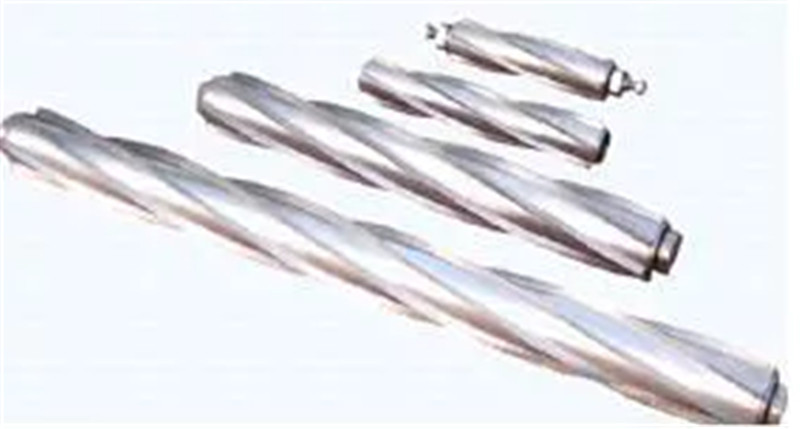

Our spiral ice blade researched & developed and produced by ourselves independently is made of high performance strong stainless steel and formed through only one time process. Its scientific structure, clean hygiene, reasonable spiral angle and accurate cylindricity make it cut ice with less resistance, no noise, vibration and balance.

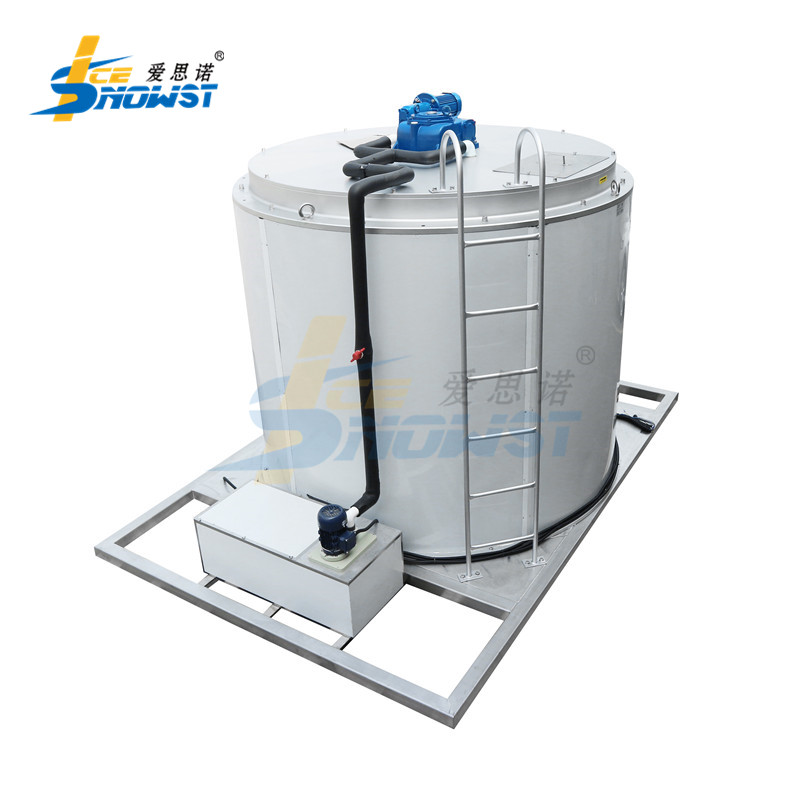

usgf (1)

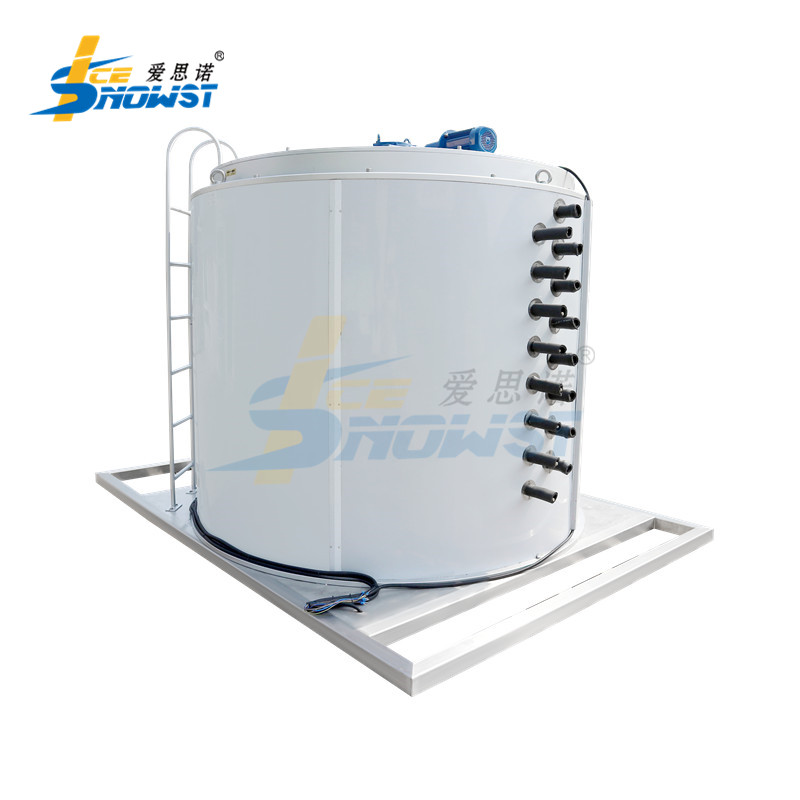

usgf (2)

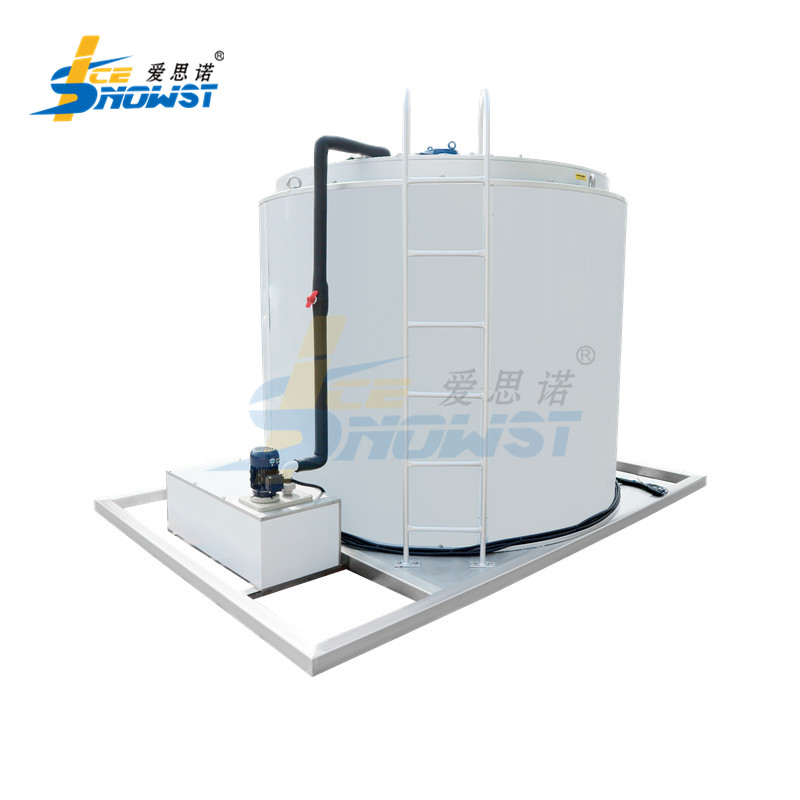

usgf (3)
