ICESNOW 10ton/day Flake Ice Evaporator hot sale
Flake ice Evaporator introduction:

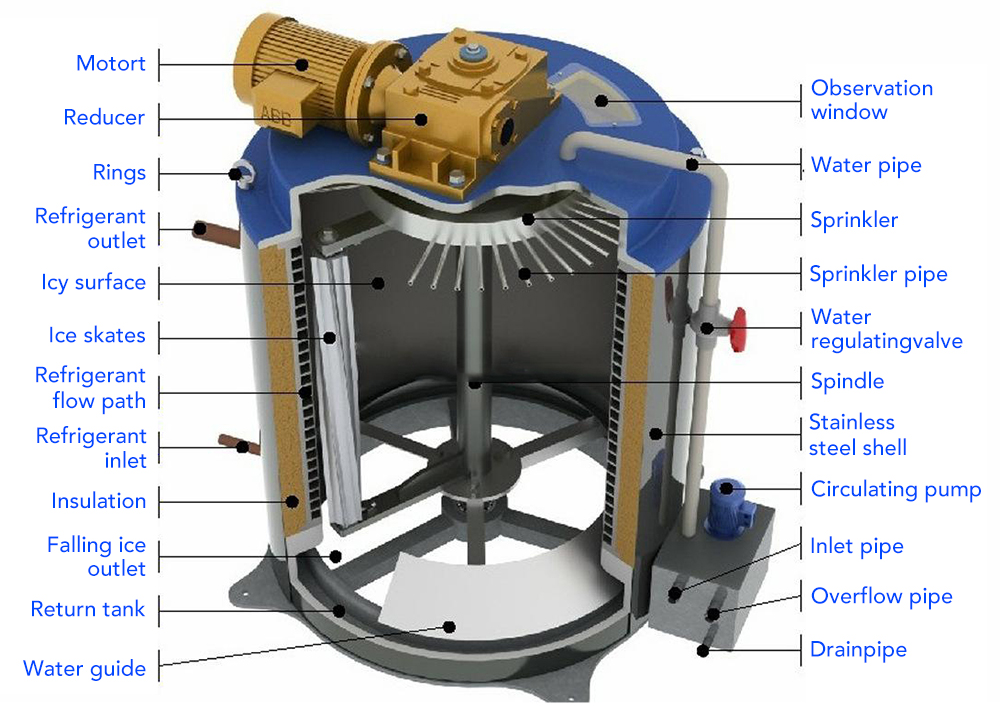

The evaporator of flake ice machine is where the ice has been generated. It is a vertical placed drum shape container, equipped
with the rotating blade which spin and scratch the ice of the inner wall of evaporator. When operating, the principle shaft and blade spins anti-clock wisely pushed by the reducer. Water is sprayed down from the sprinkler, then ice forms on the inner wall. Ice blade then scratches the ice off and ice drops down to the ice storage bin.
(1)Be made of low-temperature pressure vessel special materials and passed precision processing;
(2)More sufficient evaporation area and better performance with dry style evaporation way;
(3)Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
(4)Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile&compression strength test, etc.
(5)Using imported refrigeration accessories;
(6)All water supply line are made of stainless steel, high sanitary condition;
(7)Fast ice forming & falling speed, ice begins within 1 to 2 minutes.
(8)Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
(9)Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.
(10)Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
(1) Evaporator size and installation direction can be customized according to customers' requirements;
(2) The material of flake ice evaporator wall and up and down pedestal is available (304&316).

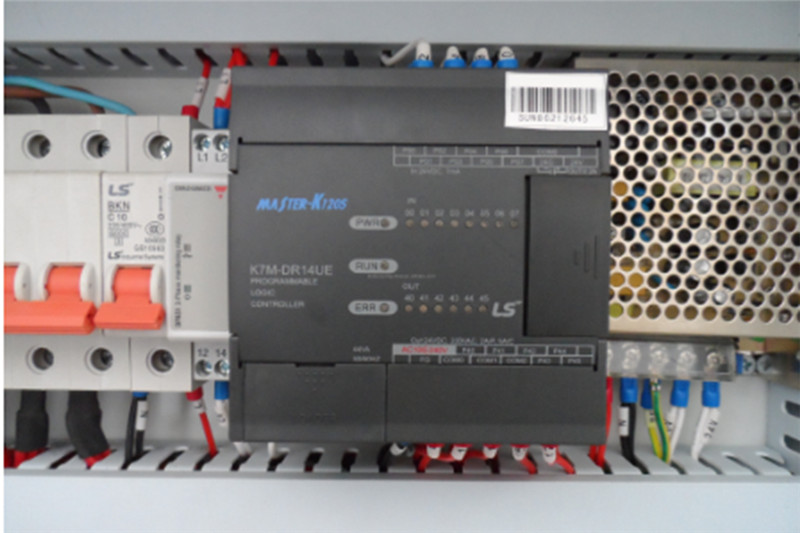

Electric box
Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components. Meanwhile, it can portect the flake ice machine when there are water shortage, ice bin full, motor overloaded, and motor reversal.
Evaporator drum
Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at the lowest power consumption.Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.

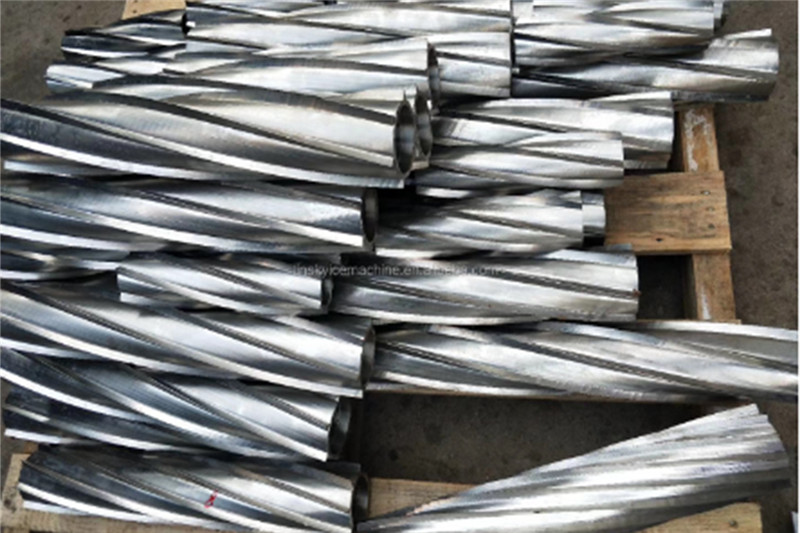

Ice cutter
Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant;
Ice thickness can be varied by changing the speed of the rotor
| Model | GMS-1000KA |
| Daily Output( Ton/24hrs) | 10ton |
| Necessary Refrigeration(kw) | 65KW |
| Voltage power | 380V/50Hz/3P,380V/60HZ/3P,220V/60HZ/3P |
| Reducer motor Power(kw) | 0.75KW |
| Water pump power | 0.37KW |
| Dimension (L*W*H)(mm) | 1990*1270*1816mm |
| Ice falling hole diameter (mm) | 1160mm |
| Weight(kg) | 850KG |
1. CE certificate.
2. Every procedure are strict checked in the production process
3. It will go through long-time ice-making performance testing and commissioning before leaving the factory to ensure its excellent performance.
1. Excellent quality, reasonable price.
2. Stable&reliable performance.
3. CE approval.
4. Long using life.
5. Energy-saving, place saving
6. Low failure and long working life: The system always runs well more than 30000hours.
7. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.
8. High efficiency and capacity
9. Easy to installation with the instruction.
| OEM/ODM | YES |
| PACKING CONTENTS | Machinery unit, User Manual, Ice bin (Optional), Cooling system, Wooden plate |
| PRICE TERMS | EXW/FOB SHENZHEN, CIF, C&F... |
| PAYMENT TERMS | TT, LC, Western union |
| LEAD TIME | 5~30 days, upon your machine capacity |
| Install | Our Engineer can install for you in your area |
| WARRANTY | 18 Months |
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C. Normally, we accept 30% Deposit and 70% balance paid before delivery.
Q2: Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q4: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very to install the machine.
Q5:What is the warranty for ice making machine?
A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.
