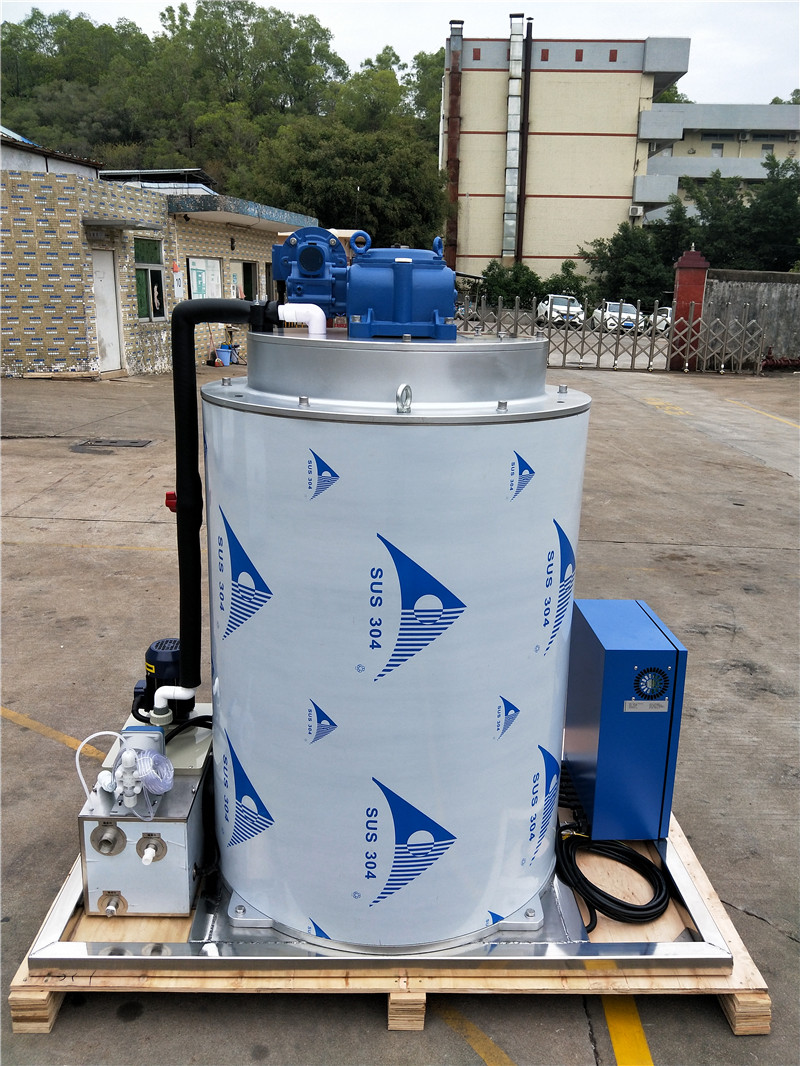

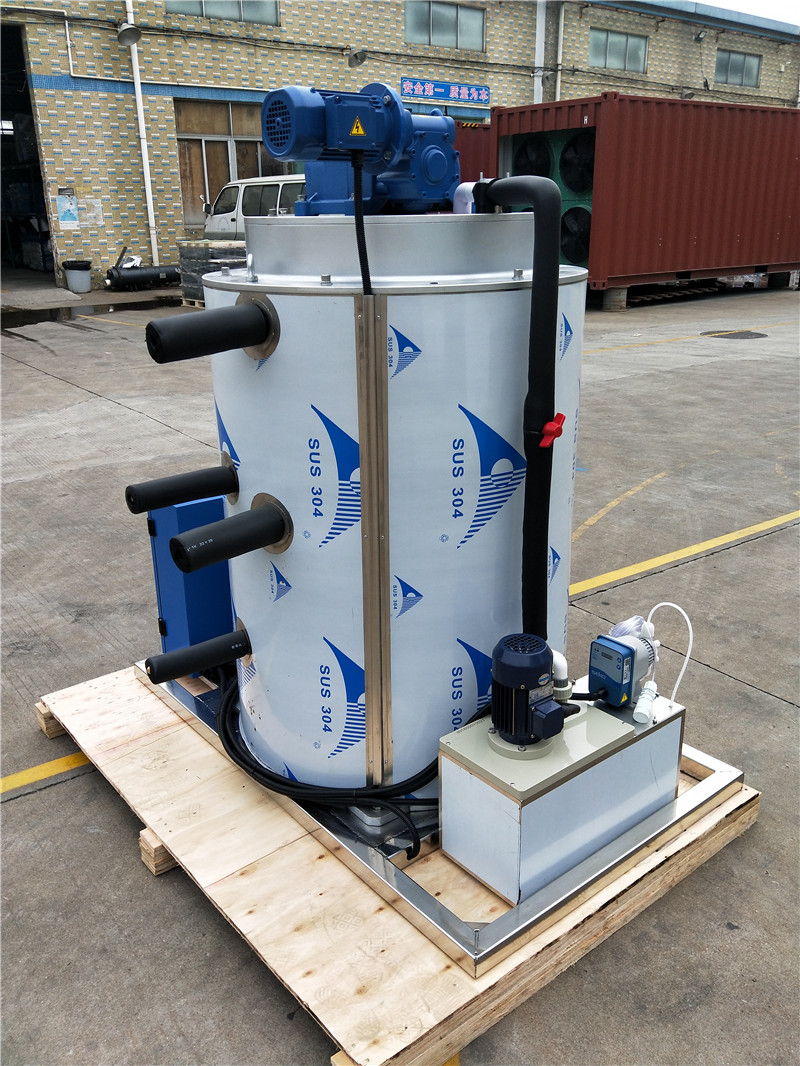

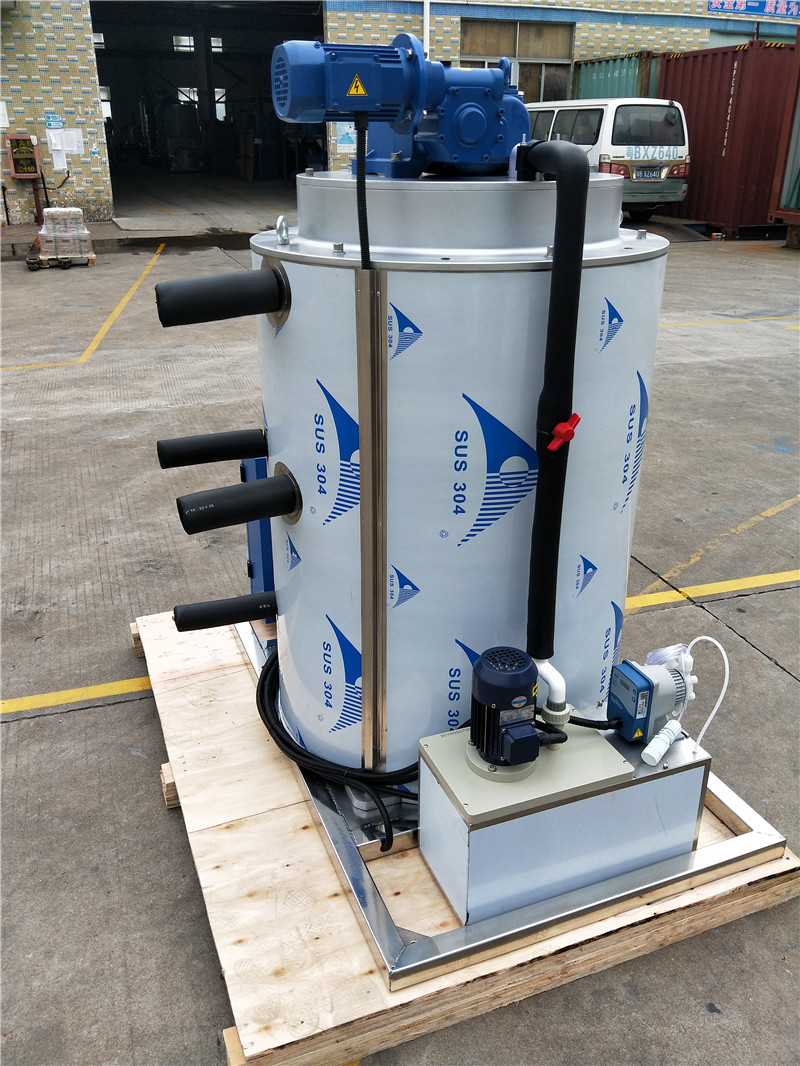

ICESNOW 5tons/day Ice Flake Evaporator/Ice Plant CE certificate

Short Description:

The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.

Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.


Product Detail

Product Tags

Flake ice machine Evaporator Advantages

The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.

Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.

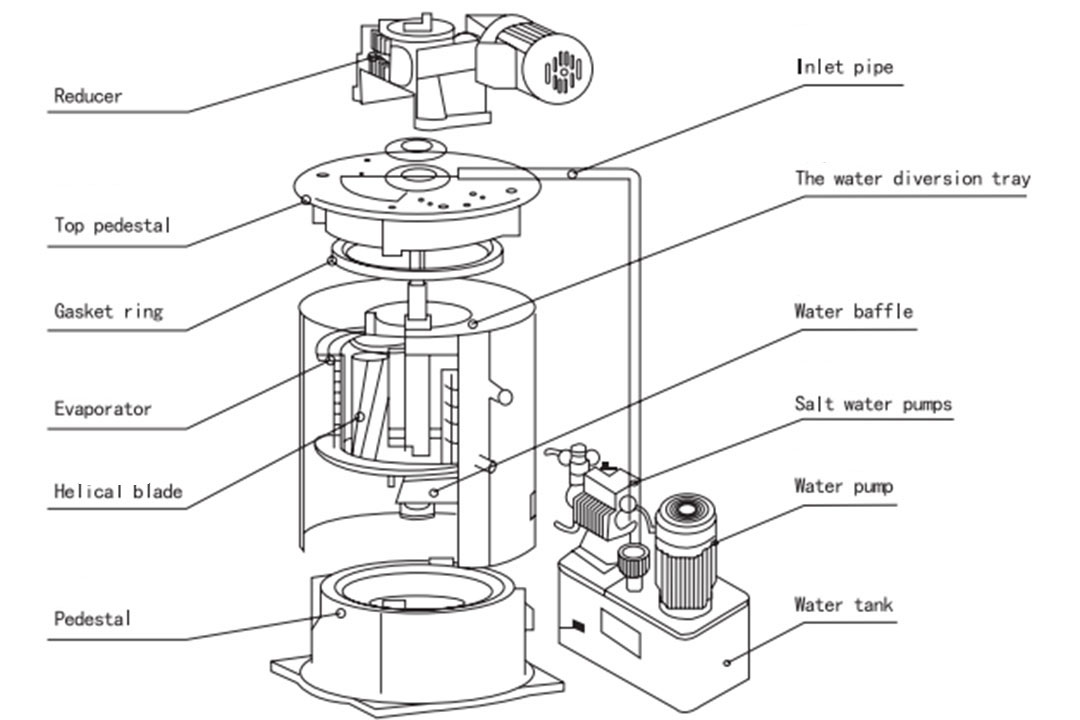

HTB195V8n

Application

No Name Technical Data
1 Capacity 5000Kg/24h
2 Refrigerant gas R22/R404a/R507a or Other as your required
3 Supply voltage 380V/50Hz,3P/220V/60Hzor other
4 Size 1500*890*1590MM
5 Evaporating temp -20℃
6 Condensed temp 40℃
7 Material of flake ice evaporator Carbon steel chrome Or SUS304
8 Power Circulating water pump 0.18 KW
Reducer motor 0.37KW

 Ice Flake evaporator advantages:

1. Be made of low-temperature pressure vessel special materials and passed precision processing;

2. More sufficient evaporation area and better performance with dry style evaporation way;

3. Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;

4. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.

5. Using imported refrigeration accessories;

6. All water supply line are made of stainless steel, high sanitary condition;

7. Fast ice forming & falling speed, ice begins within 1 to 2 minutes

23 3

Main brands on Icesnow flake ice machine

asdf5

Main brands on Icesnow flake ice machine

1. Fishing:

Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.

2. Sea food process:

Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.

3. Bakery:

During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.

4. Poultry:

Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.

5. Vegetables distribution and fresh-keeping:

Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

6. Medicine:

In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.

7. Concrete cooling:

Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediator temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.


Why to choose us:

1. Cheaper price - more competitive.

2. Longer warranty period - longest up to 18 months.

3. Faster delivery speed, have stock for specification under 5tons

4. Superior after-sales service guarantee & professional technical support.

5. More stringent quality assurance than foreign trade company, passed CE, SGS and BV world-famours three main certification

6. And the most important: As one of few ice machine evaporator leading and professional manufacturers who have the self-production capacity, we provide it for many refrigeration companies and counterparts. And they just need to assemble the ice machine with our flake ice evaporator and other refrigerating accessories. our flake ice evaporators are warmly welcomed at home and abroad.
