Automatic ice storage and delivery system

Short Description:

Icesnow Automatic Ice Storage System is a supporting system for Icesnow ice making equipment, consisting of a target automatic ice storage room, a conveying system, etc. The ice storage capacity of this system is from 30 tons to 200 tons. It is suitable for concrete mixing projects in large-scale railway and hydroelectric construction.

Send email to us

Product Detail

Product Tags

Cooling principle

After the ice from flake ice machine drop into the automatic storage ice room, when the ice in the room accumulates to a certain thickness, the rake automatic sensing device transmits the signal to the lifting device, by the lifting device drives the roller, thereby raising rake system, through rake system to rake to the screw conveyor import area, and then by the screw conveyor to the ice into the ice delivery system outside the ice storage room.

Product Features

1.The double layer insulation design, even if the ice storage room is full of ice, can also maintain the circulation of cold air in the ice storage room, so that the ice temperature is maintained at about -10 ℃.

2. frame of ice rake system using galvanized and stainless steel material, no corrosion.

3. Container ice storage room is made of steel frame.

Advantages of Automatic ice storage and delivery system

1. Double layer insulation, constant temperature lock, and cooling:Exclusive double-layer insulation structure, smooth circulation of air conditioning, and Ice storage room temperature maintained at -10 degrees Celsius when ice storage room is full of flake ice.

2. Anti corrosion and wear-resistant rake body material:

The ice rake frame can be made of galvanized or stainless steel materials, which are not easy to get rust after long-term use

3. Anti stuck ice automatic sensing protection system:

Equipped with an automatic sensing protection device to prevent the ice rake from getting stuck by flake ice.

4. visualization monitoring system inside ice storage room:

A fixed monitoring camera is installed above the ice storage room door to monitor the real-time operation of flake ice machine and the operation inside the ice storage room.

Application

1.engineering infrastructure construction

2.Aquatic Fisheries

3.Chemical industry

4.concrete cooling industry

5. Poultry & meat slaughtering processing

6. Fishery & seafood processing

success cases:

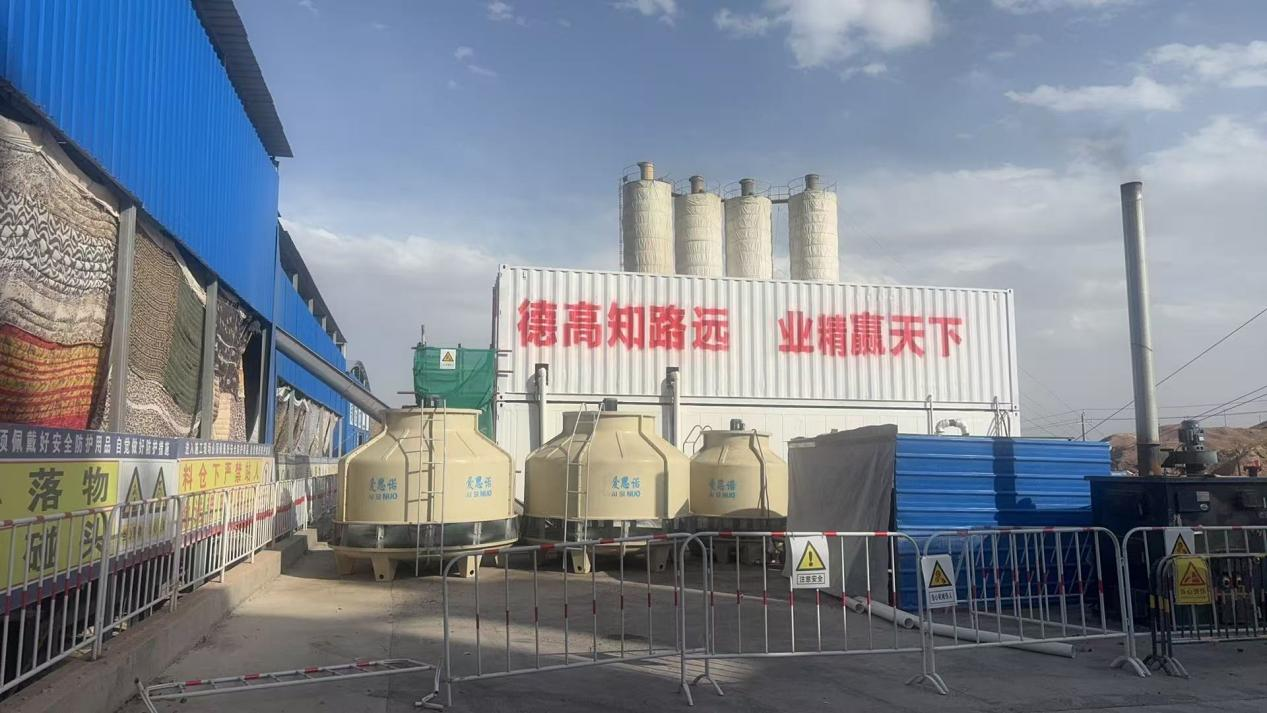

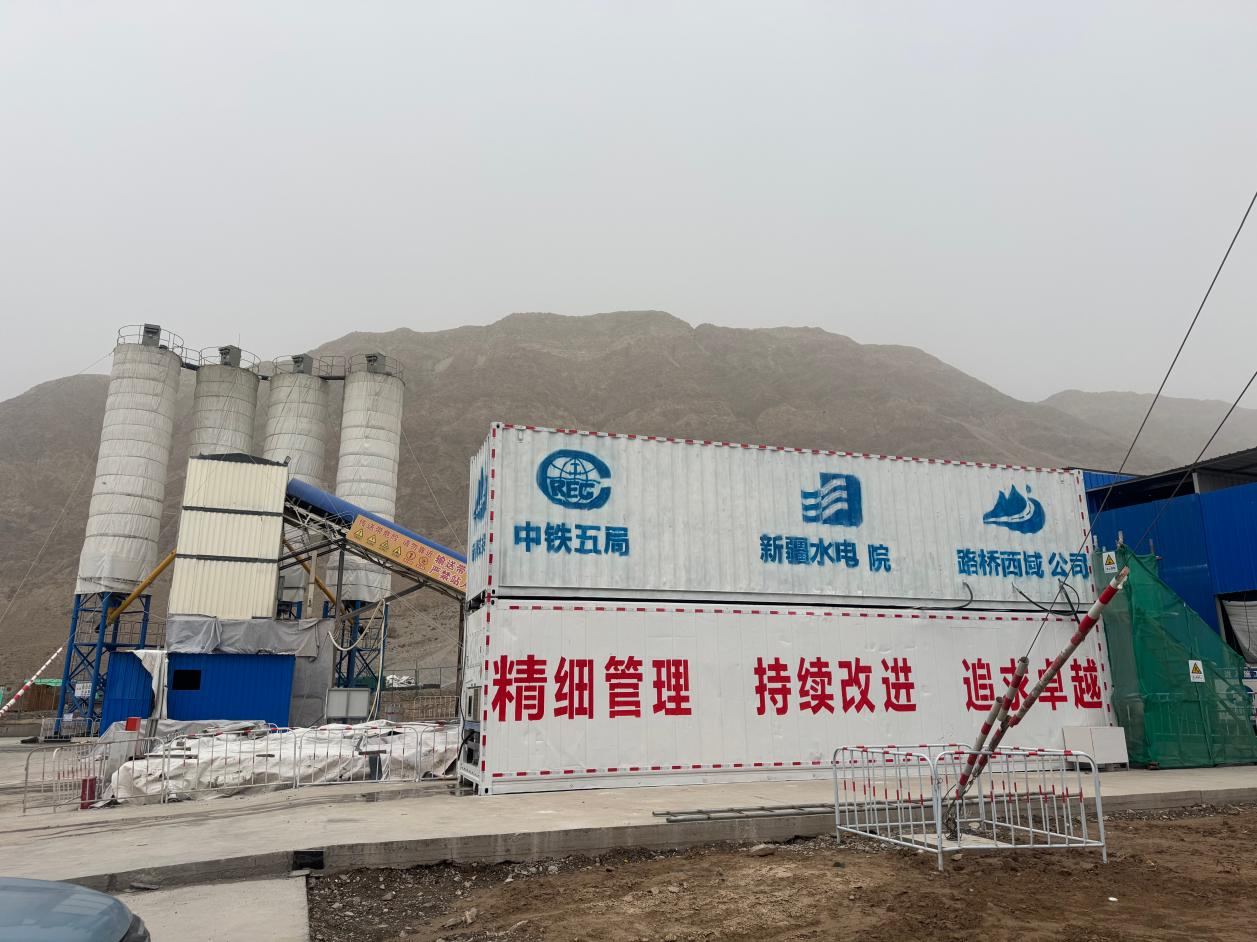

2X20ton/day containerized flake ice machine with 20ton automatic ice storage room for Tongguzi Water Conservancy Project in Aksu, it is constructed by China Railway Fifth Bureau
