For commercial ice production facilities, ocean-port seafood auctions, and retail bagged-ice suppliers, producing high-quality tube, cube, or flake ice marks only the first step toward profitability.
Manual shoveling, weighing, sealing, and stacking of ice bags is not only labor-intensive and time-consuming but also introduces significant biological contamination risks that can compromise compliance with strict FDA and HACCP sanitation standards.
To boost throughput, reduce labor costs, and maintain zero-hand-contact hygiene, forward-thinking ice plant operators are turning to fully automatic ice bagging, weighing, and palletizing systems.
With the capacity to fill and seal 20 to 60 bags per minute while maintaining high volumetric accuracy, these automated packaging solutions streamline the entire distribution chain—from storage bins straight to refrigerated delivery trucks.
At Icesnow, we engineer heavy-duty, washdown-rated stainless steel packaging equipment built specifically to withstand the harsh, high-humidity, sub-zero conditions typical of industrial cold environments. Our systems deliver reliable, hygienic, and efficient performance around the clock.

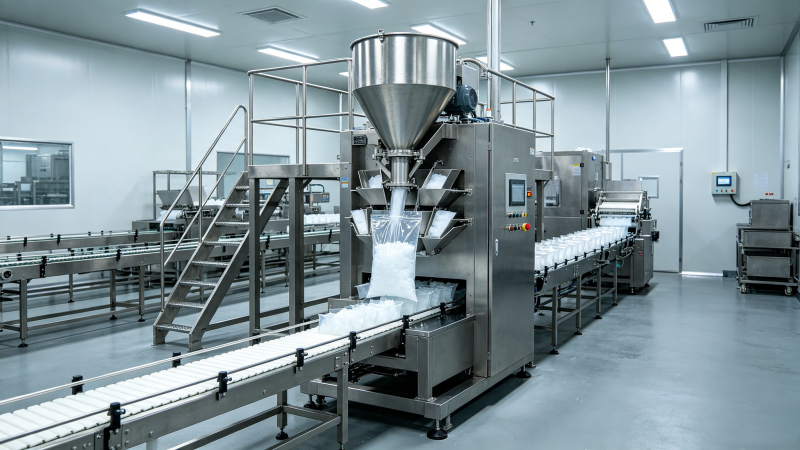

Automated stainless steel ice bagging and weighing system filling clear bags with tube ice
1. Core Components of an Automated Ice Packaging Line
A complete end-to-end ice packaging line operates through four integrated, PLC-controlled mechanical modules:
A. Washdown Multi-Head Combination Weigher
Positioned above the bagger, an IP65/IP66 waterproof multi-head scale weighs sub-cooled tube, cube, or flake ice with extreme precision (±2 grams per bag), effectively eliminating costly product giveaway and ensuring consistent portion accuracy.
B. Vertical Form Fill Seal (VFFS) Bagging Unit
Using continuous rolls of heavy-duty polyethylene (PE) film, the VFFS machine forms the bag around a stainless steel collar, drops the precisely metered ice charge, and seals the package with impulse thermal sealing jaws for secure, leak-proof closures.
C. Metal Detector & Checkweigher Inspection
Integrated inline checkweighers automatically reject bags that fall outside acceptable weight tolerances, while high-sensitivity industrial metal detectors provide an additional layer of quality assurance by ensuring zero metallic contamination prior to boxing or palletizing.
D. Automated Robotic or High-Level Palletizer
Finished ice bags are conveyed upward via incline conveyor to an automated palletizing cell, where robotic arms or mechanical layer pushers arrange the bags onto wooden or plastic pallets in customizable, stable interlocking patterns optimized for storage and transport.
2. Key Engineering & Operational Advantages
- 100% Food-Grade Sanitary Compliance: The fully automated process eliminates direct human skin contact with ice, ensuring strict adherence to global food safety standards and effectively preventing cross-contamination.
- IP65 Washdown Stainless Steel Build: Structural frames, electrical enclosures, and all contact surfaces are constructed from grade 304 or 316L stainless steel, featuring anti-condensation heated seals. This robust design withstands daily high-pressure hose-down cleaning and performs reliably in sub-zero, high-humidity environments.
- Flexible Bag Weight & Size Switching: Operators can adjust bag weight presets—such as 2 kg, 5 kg, 10 kg, or 20 kg—within seconds via an intuitive color touch-screen HMI, allowing rapid changeovers to accommodate diverse customer orders.
- Anti-Freezing Drive Mechanisms: Special low-temperature pneumatic cylinders, thermally traced sealing jaws, and synthetic cold-grade lubricants prevent mechanical jamming and ensure smooth operation even in cold room environments down to -10°C.
3. Packaging Line Performance Specifications
We engineer modular ice packaging architectures customized to match your daily factory output:
| System Series | Output Speed Range | Bag Weight Capacity | Recommended Ice Supply |
|---|---|---|---|
| Compact Semi-Auto Line | 10 – 18 Bags / Min | 5 kg to 20 kg Bags | Hopper feed from Commercial Tube Ice Machines |
| High-Speed VFFS Line | 25 – 45 Bags / Min | 2 kg to 10 kg Bags | Direct feed via Industrial Screw Conveyors |
| Ultra-Speed Mega Line | Up to 60+ Bags / Min | 1 kg to 5 kg Bags | Continuous feed from Automatic Ice Storage & Raking Systems |
Palletized ice stacks exiting the line are immediately staged inside insulated Cold Room Storage facilities held at -5°C to -8°C to maintain crisp, dry bag condition prior to distribution.
Frequently Asked Questions (FAQ)
Q: Can the bagging machine print lot numbers, dates, and barcodes directly on the ice bags?
A: Yes! Our bagging systems easily integrate with thermal transfer overprinters (TTO) or continuous inkjet printers (CIJ) to print production dates, expiration dates, barcodes, and lot numbers directly onto the PE film during the sealing cycle.
Q: How does the machine handle wet ice or surface condensation during packaging?
A: All product contact hoppers feature dimpled stainless steel surfaces to prevent wet ice flakes from sticking. Additionally, drainage ports inside the feeding chutes channel away surface meltwater before the ice enters the weighing bucket.
Automate Your Ice Packaging & Boost Profits Today
Say goodbye to slow manual labor, eliminate costly product giveaway, and elevate your commercial ice brand with custom-engineered automatic bagging and palletizing solutions. By partnering with a globally recognized leader in industrial refrigeration and food packaging machinery, you gain access to cutting-edge technology designed to maximize efficiency, hygiene, and profitability.
Our packaging automation engineering team is ready to assist you in designing a system tailored to your specific production needs. Contact us today to receive detailed CAD line layouts, comprehensive ROI payback calculations, and an official factory quote—and take the first step toward a fully automated, future-ready ice packaging operation.
