High Quality Flake Ice - 24 Months Warranty 1.5ton/day ice flaker machine/flake ice maker – Icesnow Detail:

1 .Higher refrigeration efficiency and lower loss of refrigeration capacity.

2.Automatic salt water flake ice machine adpots the latest vertical evaporator with inner helix ice cutter. In the process of ice making, the water distribution device in ice maker sprays water even on the internal surface of ice maker to frozen in a short  time . After ice formed , the helix ice cutter drops down and cut ice . In this method, it makes a full use of evaporator and increase the efficiency of ice making.

3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.

4.Simple structure and small land area .

Model Daily capacity Refrigerant capacity Total power (KW) Ice machine size Ice bin capacity Ice bin size Weight (kg)
(T/day) (kcal/h) (L*W*H/MM) (kg) (L*W*H/MM)
GM-03KA 0.3 1676 1.6 1035*680*655 150 950*830*835 150
GM-05KA 0.5 2801 2.4 1240*800*800 300 1150*1196*935 190
GM-10KA 1 5603 4 1240*800*900 400 1150*1196*1185 205
GM-15KA 1.5 8405 6.2 1600*940*1000 500 1500*1336*1185 322
GM-20KA 2 11206 7.7 1600*1100*1055 600 1500*1421*1235 397
GM-25KA 2.5 14008 8.8 1500*1180*1400 600 1500*1421*1235 491
GM-30KA 3 16810 11.4 1648*1450*1400 1500 585
GM-50KA 5 28017 18.5 2040*1650*1630 2500 1070
GM-100KA 10 56034 38.2 3520*1920*1878 5000 1970
GM-150KA 15 84501 49.2 4440*2174*1951 7500 2650
GM-200KA 20 112068 60.9 4440*2174*2279 10000 3210
GM-250KA 25 140086 75.7 4640*2175*2541 12500 4500
GM-300KA 30 168103 97.8 5250*2800*2505 15000 5160
GM-400KA 40 224137 124.3 5250*2800*2876 20000 5500
GM-500KA 50 280172 147.4 5250*2800*2505 25000 6300

(1) Be made of low-temperature pressure vessel special materials and passed precision processing;

(2) More sufficient evaporation area and better performance with dry style evaporation way;

(3) Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;

(4) Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.

(5) Using imported refrigeration accessories;

(6) All water supply line are made of stainless steel, high sanitary condition;

(7) Fast ice forming & falling speed, ice begins within 1 to 2 minutes.

(8) Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It’s durable.

(9) Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.

(10) Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


wus (1)


wus (2)

1. Who are we?

We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%), Africa(21.00%), North America(17.00%), Mid East(8.00%), South America(7.00%), South Asia(5.00%), Domestic Market(5.00%), Eastern Europe(00.00%), Oceania(00.00%), Eastern Asia(00.00%), Western Europe(00.00%), Central America(00.00%), Northern Europe(00.00%), Southern Europe(00.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. What can you buy from us?

Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines, Cube Ice Machines.

4. What services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDU;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;

Language Spoken:English,Chinese


Product detail pictures:

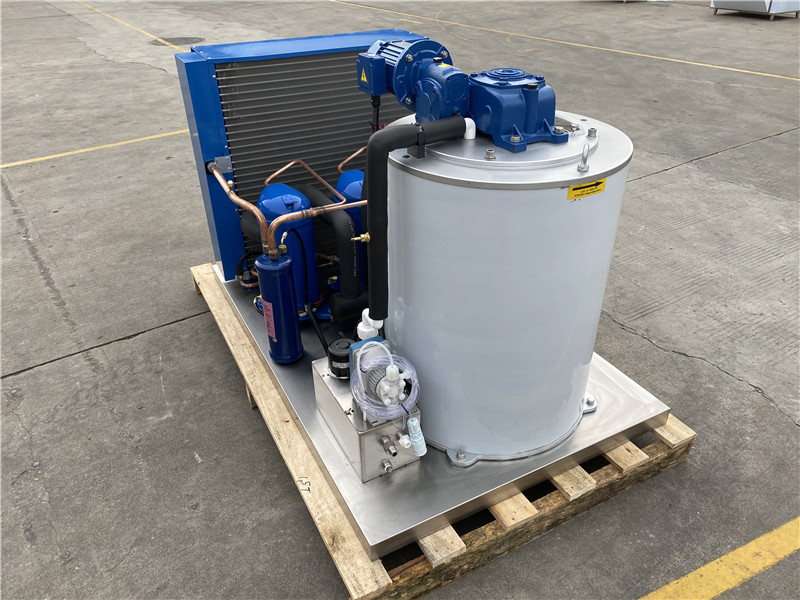

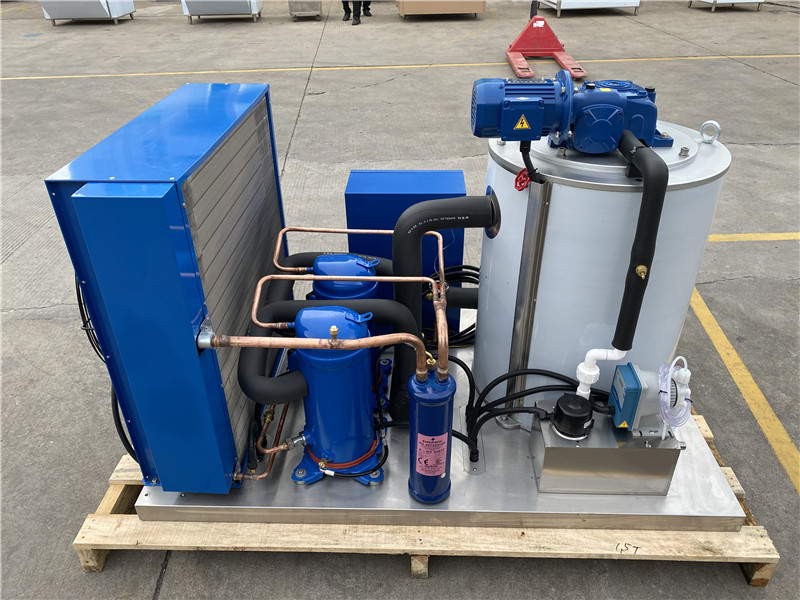

High Quality Flake Ice - 24 Months Warranty 1.5ton/day ice flaker machine/flake ice maker – Icesnow detail pictures

High Quality Flake Ice - 24 Months Warranty 1.5ton/day ice flaker machine/flake ice maker – Icesnow detail pictures

High Quality Flake Ice - 24 Months Warranty 1.5ton/day ice flaker machine/flake ice maker – Icesnow detail pictures
